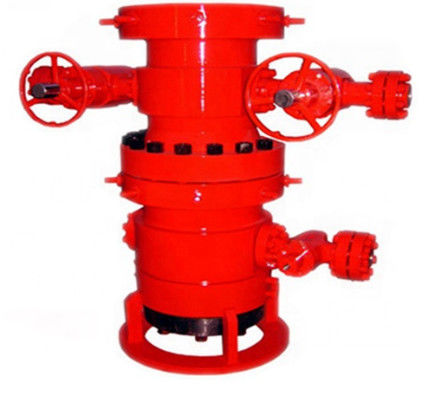

Well Drilling FF HH API 6A PSL1 26" Casing Tubing Head

API 6A Oilfield Wellhead Tubing Head / Tubing Head Adapter

Product Overview

As experienced wellhead assembly manufacturers, we provide customers with a totally compatible and warranted lump sum turnkey package—all under API License and ISO Certification. Our qualified wellhead equipment engineers provide customers with a single point of contact for all their parts and warranty requirements issues.

Top Connections FMC Surface Wellhead tubing heads have either bolt-through flange or clamp-hub top connections, which are compatible with all FMC tubing head adapters. The producing pressure of the well normally determines the pressure rating of the top connection.

Providing a transition from the wellhead to the tree, the tubing head adapter is used for both single and multiple completions. FMC's standard tubing head adapter product line consists of nine models, each designed to work with a set group of tubing heads and hangers. With threaded, flanged, or studded-top connections, most adapters can be machined with a hydraulic supply inlet for downhole control lines.

Specialities of TR Wellhead Tubing Head

1. Designed and manufactured with reference to API 6A technical specifications.
2. Made from high-strengh alloy and processed specially with heating treatment.
3. All stell tanks are welded with staintess stell for long-term anti-corrosion.
4. Used for high-pressure drilling, in conjunction with flat valve for preventing blowout and connecting BOP.
5. Top & bottom connections and outlets per customer design requirements by either flanged or clamp connections.
6. Fit for Hydrogen sulfide H2S resistant service, manufactured with reference to NACEMR 0175 technical specifications.

Structure of Tubing Head

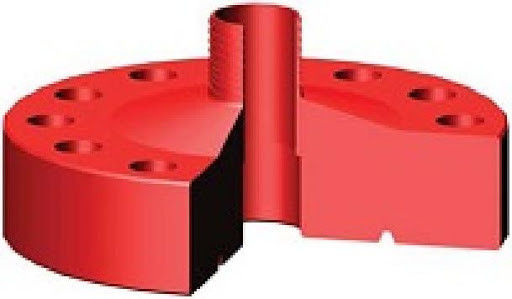

Tubing head is usually a spool with both flanged ends, which is set on the top flange of casing head to hang tubing hanger and seal the annular space between the tubing string and oil-layer casing and which consists of tubing head spool and tubing hanger.

Technical Data of TR Wellhead Tubing Head
